The KP S-Series is a new, smaller addition to the KP Series, featuring our latest 55° zoom optical lens. It offers precision lighting with enhanced versatility, perfect for a wide range of applications.

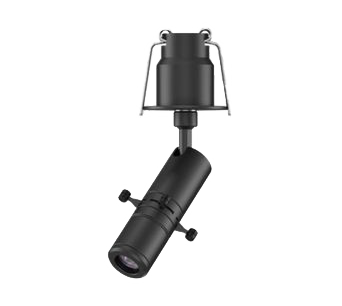

KP S-Series
-
Ultra-High-Definition Projection: Features exceptional clarity and detail.
Millimeter-Level Spot Shaping: Features uniform illumination with precise spot control.
Versatile Lens Options: Easily switch between fixed-focus and zoom lenses.
Smart Control: Color temperature with ease. Adjustable Dimming: N/A
-
Ideal for a wide range of applications including museums, art galleries, home decoration, hotels, restaurants, machine vision lighting, glass cases, showrooms, and other creative commercial lighting solutions
-
KP S-MODELS
Product Specifications
Model | Power | Illumination | Ra | Color Kelvin | Beam Angle | Optical Lens | TV Distortion | Sharpness /resolution |
Single Lamp Dimming DIP-CCT |
Voltage (AC) | Case Color | G.W. |
---|---|---|---|---|---|---|---|---|---|---|---|---|
M1003K-3836B | 10W | 300-350LM | 97 | 2700K 3000K 4000K |
15-36° | 11 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.36 kg |
M1003K-3855 | 10W | 300-350LM | 97 | 2700K 3000K 4000K |
55° | 10 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.32 kg |
D1040K-3836B | 10W | 300-350LM | 97 | 2700K 3000K 4000K |
15-36° | 11 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.36 kg |
D1040K-3855 | 10W | 300-350LM | 97 | 2700K 3000K 4000K |
55° | 10 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.32 kg |
D0525K-28368 | 5W | 100-140LM | 97 | 2700K 3000K 4000K |
15-36° | 10 pcs | < 0.2% | 0.01/1 | N/A | 220-240V | Black White |
0.21 kg |
D0525K-2855 | 5W | 145-160LM | 97 | 2700K 3000K 4000K |
55° | 10 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.19 kg |
D0325K-18368 | 3W | 35-45LM | 97 | 2700K 3000K 4000K |
15-36° | 10 pcs | < 0.25% | 0.01/1 | N/A | 220-240V | Black White |
0.13 kg |
D0325K-1855 | 3W | 70-75LM | 97 | 2700K 3000K 4000k |
55° | 10 pcs | < 0.4% | 0.01/1 | N/A | 220-240V | Black White |
0.12 kg |
T1003K-3836 | 10W | 300-350LM | 97 | 2700K 3000K 4000K |
15-36° | 11 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.36 kg |
T1003K-3855 | 10W | 300-350LM | 97 | 2700K 3000K 4000K |
55° | 10 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.32 kg |
T0503K-2836B | 5W | 100-140LM | 97 | 2700K 3000K 4000K |
15-36° | 10 pcs | < 0.2% | 0.01/1 | N/A | 220-240V | Black White |
0.21 kg |
T0503K-2855 | 5W | 145-160LM | 97 | 2700K 3000K 4000K |
55° | 10 pcs | < 0.6% | 0.01/1 | N/A | 220-240V | Black White |
0.19 kg |
